| Derbi's profilation of this bike |
| This Urban-Off-Road is fascinating by its amazing design, its technical features and its price-quality-relation. |
|
General moped information |
|
Motorcycle name
|

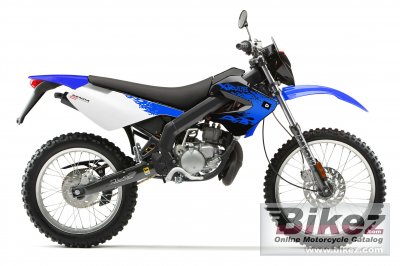

Derbi Senda XRace 50 R |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
| Price as new | Euro 2400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.9 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Driveline
|
Gear assemby primary drive |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
36 mm hydraulic fork |
|
Front wheel travel
|
190 mm (7.5 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
182 mm (7.2 inches) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
118.0 kg (260.1 pounds) |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1222 mm (48.1 inches) |
|
Overall length
|
2036 mm (80.2 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Black, blue |
|
Starter
|
Kick |
|
Electrical
|
12V 4Ah battery |
|
Comments
|
Spanish brand. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Derbi Senda XRace 50 R discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Derbi moped
|
Reliability for the 2012 Derbi Senda XRace 50 R:
 (74.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
