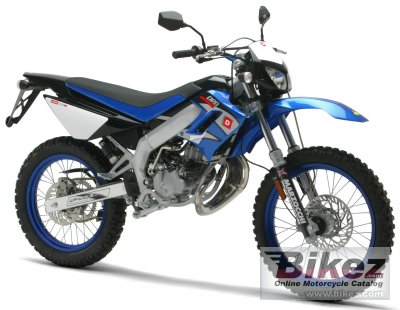

2005 Derbi Senda Racer. Picture credits - Derbi. Submit more pictures.

2005 Derbi Senda Racer

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Derbi Senda Racer
Year:	2005
Category:	Enduro / offroad
Rating:	75.4 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.90 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	13.0:1
Bore x stroke:	39.9 x 40.0 mm (1.6 x 1.6 inches)
Fuel system:	Carburettor. Dell´Orto PHVA-14
Ignition:	C.D.I.
Lubrication system:	Oil pump
Cooling system:	Liquid
Gearbox:	6-speed
Clutch:	Multi-disc
Chassis, suspension, brakes and wheels
Front suspension:	Hydraulic fork, 36 mm
Front wheel travel:	190 mm (7.5 inches)
Rear suspension:	Lineal gas single absorber
Rear wheel travel:	50 mm (2.0 inches)
Front tyre:	80/90-21
Rear tyre:	110/80-18
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Rear brakes diameter:	180 mm (7.1 inches)
Physical measures and capacities
Overall height:	1,300 mm (51.2 inches)
Overall length:	2,050 mm (80.7 inches)
Overall width:	695 mm (27.4 inches)
Wheelbase:	1,345 mm (53.0 inches)
Fuel capacity:	5.50 litres (1.45 gallons)
Other specifications
Starter:	Kick
