Derbi Senda R X-Treme 2004

2004 Derbi Senda R X-Treme specifications, pictures, reviews and rating

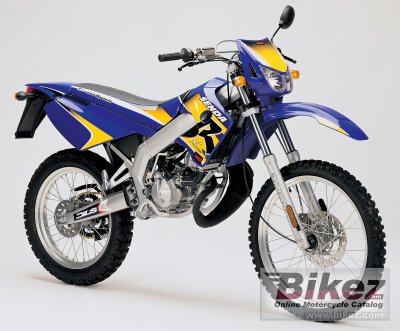

2004 Derbi Senda R X-Treme. Picture credits - Derbi. Submit more pictures.

2004 Derbi Senda R X-Treme

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Derbi Senda R X-Treme
Year:	2004
Category:	Enduro / offroad
Rating:	81.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.90 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	13.0:1
Bore x stroke:	39.9 x 40.0 mm (1.6 x 1.6 inches)
Fuel system:	Carburettor
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front suspension:	Hydraulic fork, 36 mm
Front wheel travel:	190 mm (7.5 inches)
Rear suspension:	Linal gas absorber
Rear wheel travel:	50 mm (2.0 inches)
Front tyre:	80/90-21
Rear tyre:	110/80-18
Front brakes:	Single disc
Front brakes diameter:	260 mm (10.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	220 mm (8.7 inches)
Physical measures and capacities
Overall height:	1,220 mm (48.0 inches)
Overall length:	2,035 mm (80.1 inches)
Overall width:	805 mm (31.7 inches)
Wheelbase:	1,355 mm (53.3 inches)
Fuel capacity:	7.00 litres (1.85 gallons)
Reserve fuel capacity:	1.00 litres (0.26 gallons)
Other specifications
Color options:	Blue, Red, Green, Black
Further information
