General moped information |
Motorcycle name
|

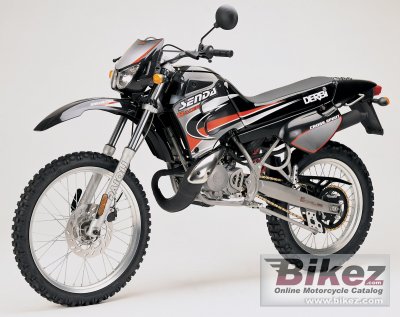

Derbi Senda R Racer |
Year of manufacture
|
2004 |
Type
|
Enduro / offroad |
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.9 ccm (3.04 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Compression
|
13.0:1 |
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
Fuel system
|
Carburettor |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Hydraulic fork, 36 mm |
Front wheel travel
|
190 mm (7.5 inches) |
Rear suspension
|
Linal gas absorber |
Rear wheel travel
|
62 mm (2.4 inches) |
Front tire
|
80/90-21 |
Rear tire
|
110/80-18 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
180 mm (7.1 inches) |
Physical measures and capacities |
Overall height
|
1300 mm (51.2 inches) |
Overall length
|
2050 mm (80.7 inches) |
Overall width
|
695 mm (27.4 inches) |
Wheelbase
|
1345 mm (53.0 inches) |
Fuel capacity
|
5.50 litres (1.45 US gallons) |
Other specifications |
Color options
|
Black, blue |
