| Derbi's profilation of this bike |
| Aggressive, effective and modern.
Thus the DRD Racing Supermotard is described.
Low maintenance and high performance. |
|
General moped information |
|
Model
|

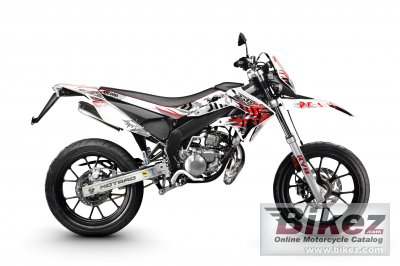

Derbi Senda DRD Racing 50 SM |
|
Year of manufacture
|
2011 |
|
Type
|
Super motard |
| Price as new | Euro 3051. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Driveline
|
Primary transmission: Gear assembly |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
40 mm upside down fork. |
|
Front wheel travel
|
195 mm (7.7 inches) |
|
Rear suspension
|
Monoshock with progressive link system. |
|
Rear wheel travel
|
182 mm (7.2 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2050 mm (80.7 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Blue/white, red/white |
|
Starter
|
Kick |
|
Electrical
|
Battery 12V 4Ah |
|
Comments
|
Bike made in Spain. DRD is an abbreviation of Derbi Racing Development. |
