Derbi Senda DRD Racing 50 R 20122012 Derbi Senda DRD Racing 50 R specifications, pictures, reviews and rating |

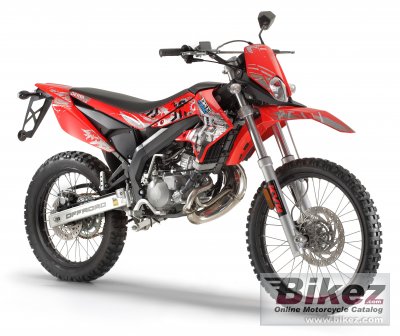

 2012 Derbi Senda DRD Racing 50 R. Picture credits - Derbi. Submit more pictures.
|
| Derbi's profilation of this bike |
| Easy to ride, it can be mastered any time and any place. Adding its outstanding fairing, DRD Racing is an unrivaled combination. |
| General moped information | |
|---|---|
| Model | Derbi Senda DRD Racing 50 R |
| Year | 2012 |
| Category | Enduro / offroad |
| Price as new | Euro 2930. MSRP depends on country, taxes, accessories, etc. |
| Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.9 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 39.9 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system | Carburettor. 17.5 mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Oil pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-disc |
| Driveline | Gear assembly primary drive |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 40 mm upside down fork. |
| Front wheel travel | 195 mm (7.7 inches) |
| Rear suspension | Monoshock with progressive link system. |
| Rear wheel travel | 182 mm (7.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 110/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 96.0 kg (211.6 pounds) |
| Seat height | 875 mm (34.4 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2123 mm (83.6 inches) |
| Overall width | 805 mm (31.7 inches) |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Reserve fuel capacity | 1.30 litres (0.34 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Color options | Blue/white, red/white, black |
| Starter | Kick |
| Comments | DRD is an abbreviation of Derbi Racing Development. |
