| Derbi's profilation of this bike |
| Aluminium perimeter double beamed frame with support and protection cradle for the engine.
Upside down 40 mm diameter fork, aluminium progressive link swingarm. Front brakes with pump and radial caliper. You’ll have to work hard to get it to the limit!.
|
|
General moped information |
|
Motorcycle name
|

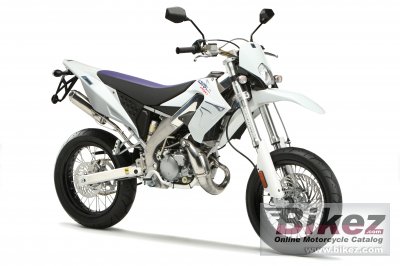

Derbi Senda DRD Pro 50 SM |
|
Year model
|
2010 |
|
Type
|
Super motard |
|
Rating
|
2.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
40 mm. Upside down fork. |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
Progressive linkage monoshock with separate gas tank. |
|
Rear wheel travel
|
250 mm (9.8 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Weight incl. oil, gas, etc
|
104.0 kg (229.3 pounds) |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2005 mm (78.9 inches) |
|
Overall width
|
808 mm (31.8 inches) |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
White/black/red |
|
Starter
|
Electric |
|
Comments
|
Spanish made bike. |
