| Derbi's profilation of this bike |
| With increased weighting at the front end and a lowered seat (only 835 mm) integrated into the motorcycle, the DRD EVO provides the clearest indication of its innovative position in the 50 motorcycle range. |
|
General moped information |
|
Model
|

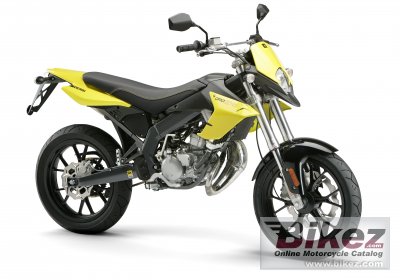

Derbi Senda DRD Evo 50 SM |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimetral double beam |
|
Front suspension
|
Upside down fork. |
|
Front wheel travel
|
150 mm (5.9 inches) |
|
Rear suspension
|
Monoshock |
|
Rear wheel travel
|
150 mm (5.9 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Wave |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Wave |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Weight incl. oil, gas, etc
|
104.0 kg (229.3 pounds) |
|
Seat height
|
835 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2020 mm (79.5 inches) |
|
Overall width
|
805 mm (31.7 inches) |
|
Wheelbase
|
1370 mm (53.9 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Kick |
|
Comments
|
Spanish bike |
