| Derbi's profilation of this bike |

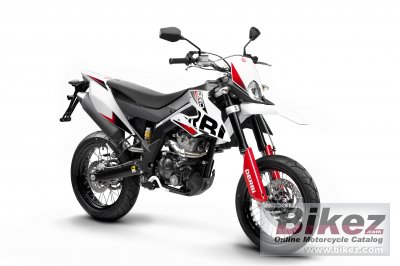

| DERBI presents its new Senda DRD 125 SM, bike, freestyle inspired, that allows for maximum enjoyment on the road. |
|
General information |
|
Model name
|
Derbi Senda DRD 125 4T 4V SM |
|
Model year
|
2010 |
|
Category
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.2 ccm (7.58 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 30 mm |
|
Ignition
|
CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double steel beam |
|
Front suspension
|
Upside down fork |
|
Front wheel travel
|
245 mm (9.6 inches) |
|
Rear suspension
|
Monoshock with adjustable preload |
|
Rear wheel travel
|
225 mm (8.9 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Wave |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Wave |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
124.0 kg (273.4 pounds) |
|
Power/weight ratio
|
0.1210 HP/kg |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2129 mm (83.8 inches) |
|
Overall width
|
808 mm (31.8 inches) |
|
Wheelbase
|
1443 mm (56.8 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Black/white/red |
|
Starter
|
Electric |
|
Comments
|
Spanish made bike. |
