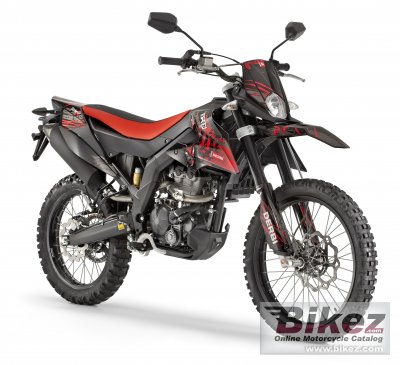

Derbi's profilation of this bike |
New Senda DRD 125 4S 4V R. Get ready to experience strong emotions. Get ready to have fun as you never imagined you could have it before. |
General information |
Model
|
Derbi Senda DRD 125 4T 4S R |
Year
|
2012 |
Category
|
Enduro / offroad |
Price as new | Euro 4080. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Displacement
|
124.2 ccm (7.58 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power
|
15.0 HP (10.9 kW)) @ 9250 RPM |
Compression
|
12.0:1 |
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. 30 mm |
Ignition
|
Electronic CDI |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-plate in oil bath |
Emission details
|
Euro III |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel perimetral double beam |
Front suspension
|
Upside down fork |
Front wheel travel
|
245 mm (9.6 inches) |
Rear suspension
|
Monoshock with adjustable preload |
Rear wheel travel
|
225 mm (8.9 inches) |
Front tire
|
90/90-21 |
Rear tire
|
120/80-18 |
Front brakes
|
Single disc. Wave |
Diameter
|
260 mm (10.2 inches) |
Rear brakes
|
Single disc. Wave |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
120.0 kg (264.6 pounds) |
Power/weight ratio
|
0.1250 HP/kg |
Seat height
|
905 mm (35.6 inches) If adjustable, lowest setting. |
Overall length
|
2188 mm (86.1 inches) |
Wheelbase
|
1443 mm (56.8 inches) |
Fuel capacity
|
8.00 litres (2.11 US gallons) |
Other specifications |
Color options
|
Blue, black |
Starter
|
Electric |
Comments
|
Spanish bike. DRD is an abbreviation of Derbi Racing Development. |
