Derbi's profilation of this bike |
Pleasure is not opposed to economy, as the new Senda BAJA demonstrates. The perfect combination between performances and low consumption, thanks to its modern 4 strokes engine, successfully combined with a double beamed frame, broad tyres and powerful disc brakes. |
General information |
Model
|

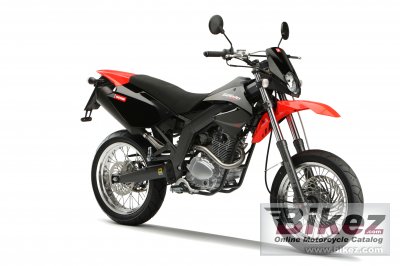

Derbi Senda Baja 125 SM |
Year of manufacture
|
2012 |
Type
|
Super motard |
Price as new | Euro 2919. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.0 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. 26 mm |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Lubrication system
|
Oil pump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-disc |
Driveline
|
Primary transmission: Gear assembly |
Emission details
|
Euro 3 |
Chassis, suspension, brakes and wheels |
Front suspension
|
41 mm. hydraulic fork. |
Front wheel travel
|
195 mm (7.7 inches) |
Rear suspension
|
Monoshock. |
Rear wheel travel
|
200 mm (7.9 inches) |
Front tire
|
110/80-17 |
Rear tire
|
130/70-17 |
Front brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
118.0 kg (260.1 pounds) |
Weight incl. oil, gas, etc
|
128.0 kg (282.2 pounds) |
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
Overall height
|
1191 mm (46.9 inches) |
Overall length
|
2104 mm (82.8 inches) |
Wheelbase
|
1452 mm (57.2 inches) |
Fuel capacity
|
8.00 litres (2.11 US gallons) |
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
Other specifications |
Color options
|
Black/red |
Starter
|
Electric |
Electrical
|
Battery 12V 6Ah |
Comments
|
Spanish brand. |
