| Derbi's profilation of this bike |
| The legendary Senda Baja: the best choice to evoke a powerful emotive response, either as an Off-Road bike or as a Supermotard. |
|
General information |
|
Motorcycle name
|

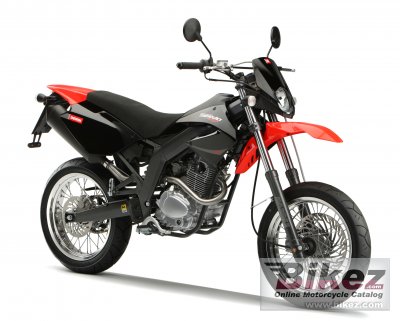

Derbi Senda Baja 125 SM |
|
Model year
|
2011 |
|
Category
|
Super motard |
| Price as new | Euro 2644. UK £ 2514. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. 26 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate |
|
Driveline
|
Primary transmission: Gear assembly |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
41 mm. hydraulic fork. |
|
Front wheel travel
|
195 mm (7.7 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
200 mm (7.9 inches) |
|
Front tire
|
110/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
118.0 kg (260.1 pounds) |
|
Weight incl. oil, gas, etc
|
128.0 kg (282.2 pounds) |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1191 mm (46.9 inches) |
|
Overall length
|
2104 mm (82.8 inches) |
|
Wheelbase
|
1452 mm (57.2 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Black/red |
|
Starter
|
Electric |
|
Electrical
|
Battery 12V 6Ah |
|
Comments
|
Derbi is a Spanish brand. |
