Derbi's profilation of this bike |
Reliability and exceptional performances are guaranteed by its agile and rigid chassis which also enables the total control of your bike. |
General information |
Model
|

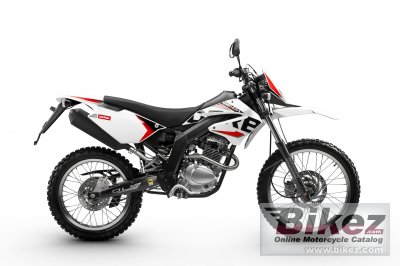

Derbi Senda Baja 125 R |
Year model
|
2012 |
Type
|
Enduro / offroad |
Price as new | Euro 2719. MSRP depends on country, taxes, accessories, etc. |
Rating
|
2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.1 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. 26 mm |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-disc |
Driveline
|
Primary transmission: Gear assembly |
Emission details
|
Euro III |
Chassis, suspension, brakes and wheels |
Front suspension
|
41mm hydraulic fork. |
Front wheel travel
|
195 mm (7.7 inches) |
Rear suspension
|
Monoshock. |
Rear wheel travel
|
200 mm (7.9 inches) |
Front tire
|
80/90-21 |
Rear tire
|
110/80-18 |
Front brakes
|
Single disc |
Diameter
|
260 mm (10.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
118.0 kg (260.1 pounds) |
Weight incl. oil, gas, etc
|
127.0 kg (280.0 pounds) |
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
Overall height
|
1222 mm (48.1 inches) |
Overall width
|
818 mm (32.2 inches) |
Wheelbase
|
1452 mm (57.2 inches) |
Fuel capacity
|
8.00 litres (2.11 US gallons) |
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
Oil capacity
|
1.00 litres (1.06 US quarts) |
Other specifications |
Color options
|
Red, black, white |
Starter
|
Electric |
Electrical
|
Battery 12V 6Ah |
Comments
|
Made in Spain. |
