Derbi Revolution 50 20062006 Derbi Revolution 50 specifications, pictures, reviews and rating |

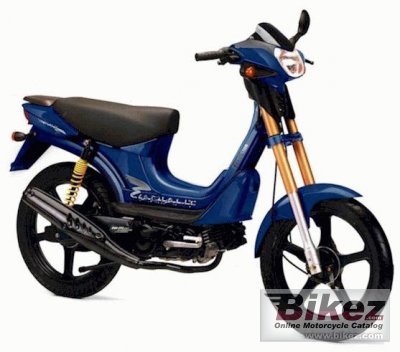

 2006 Derbi Revolution 50. ivahn. Submit more pictures. |
| General moped information | |
|---|---|
| Model name | Derbi Revolution 50 |
| Model year | 2006 |
| Category | Scooter |
| Rating | 2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.9 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 8.5 HP (6.2 kW)) @ 7500 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 41.0 x 37.4 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. ARBEO SHA 12-12 |
| Cooling system | Air |
| Gearbox | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 105 mm (4.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 105 mm (4.1 inches) |
| Physical measures and capacities | |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1780 mm (70.1 inches) |
| Overall width | 670 mm (26.4 inches) |
| Wheelbase | 1200 mm (47.2 inches) |
| Fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Derbi Revolution 50 discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2006 Derbi Revolution 50 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Derbi moped | |
Reliability for the 2006 Derbi Revolution 50:  (56.7 out of 100)Click here for complete rating. You can also compare bikes. |
|
