| Derbi's profilation of this bike |
| Ever since it made its debut, Derbi Rambla has been a mixture of dynamism, technological innovation, a sporty nature and reliability.And today it is taking another step forward and adds the mighty and responsive 300ie version to the young 125cc variant in the series. |
|
General information |
|
Model name
|

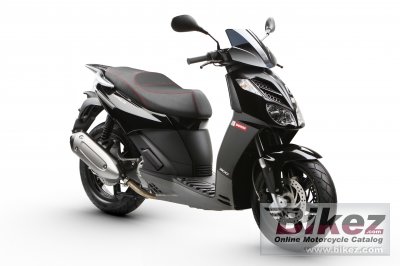

Derbi Rambla 300i |
|
Model year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
278.3 ccm (16.98 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
22.5 HP (16.4 kW)) @ 7250 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
75.0 x 63.0 mm (3.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Front suspension
|
35 mm hydraulic fork. |
|
Front wheel travel
|
100 mm (3.9 inches) |
|
Rear suspension
|
Double hydraulic shock absorber with adjustable preload. |
|
Rear wheel travel
|
80 mm (3.1 inches) |
|
Front tire
|
120/70-15 |
|
Rear tire
|
130/80-15 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
146.0 kg (321.9 pounds) |
|
Weight incl. oil, gas, etc
|
159.0 kg (350.5 pounds) |
|
Power/weight ratio
|
0.1541 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1985 mm (78.1 inches) |
|
Overall width
|
880 mm (34.6 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Black, white |
|
Comments
|
Spanish brand. |
