| Derbi's profilation of this bike |
| In the Derbi Rambla, its looks and technology go hand in hand. The joint work of engineers and designers has enabled the creation of a vehicle that seamlessly combines a sophisticated, advanced and comfortable design with high levels of robustness and safety: the definitive sum of Derbi’s sporting spirit with all the technical capabilities of the Piaggio engine. |
| General information |
|---|

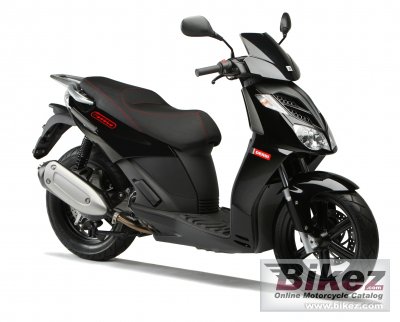

| Model: | Derbi Rambla 125 |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | Euro 3009. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 14.75 HP (10.8 kW)) @ 9500 RPM |
| Compression: | 12.5:1 |
| Bore x stroke: | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor |
| Lubrication system: | Mechanical oil pump |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Centrifugal automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel chassis |
| Front suspension: | 35 mm hydraulic fork. |
| Front wheel travel: | 100 mm (3.9 inches) |
| Rear suspension: | Double hydraulic shock absorber with adjustable preload. |
| Rear wheel travel: | 80 mm (3.1 inches) |
| Front tyre: | 120/70-15 |
| Rear tyre: | 130/80-15 |
| Front brakes: | Double disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | 6-spoke, black rims |
| Seat: | Dual seat |
| Physical measures and capacities |
|---|
| Dry weight: | 144.0 kg (317.5 pounds) |
| Power/weight ratio: | 0.1024 HP/kg |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall length: | 1,985 mm (78.1 inches) |
| Overall width: | 880 mm (34.6 inches) |
| Wheelbase: | 1,360 mm (53.5 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Other specifications |
|---|
| Color options: | Black, white, silver |
| Starter: | Electric |
| Instruments: | Analogue |
| Comments: | Spanish scooter. |
