| Derbi's profilation of this bike |
| The distinctive characteristics of this special edition include a fire red lower section with a black horizontal band extending the entire length of the motorcycle in pure Seventies racing style.
|
|
General information |
|
Motorcycle name
|

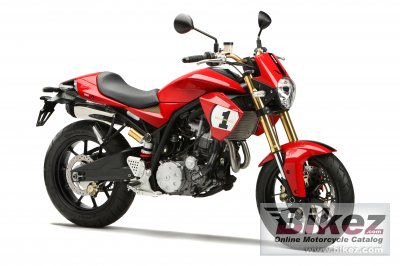

Derbi Mulhacen Cafe 659 Angel Nieto LE |
|
Year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
659.7 ccm (40.25 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Nippondenso electronic injection with second air system |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular High Tensile Steel |
|
Front suspension
|
Upside-down fork. |
|
Rear suspension
|
Hydraulic progressive linkage monoshock. |
|
Front tire
|
110/60-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
164.0 kg (361.6 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2120 mm (83.5 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1386 mm (54.6 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Color options
|
Red/black. |
|
Starter
|
Electric |
|
Comments
|
Limited edition bike. |
