Derbi's profilation of this bike |
The spirit of the naked sports bike finally available in the 125 category.
|
General information |
Motorcycle name
|

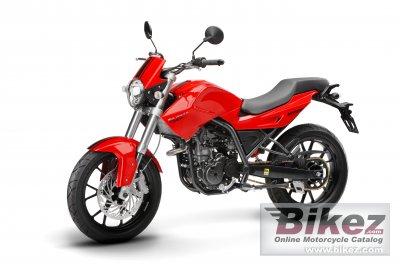

Derbi Mulhacen Cafe 125 |
Year of manufacture
|
2009 |
Type
|
Naked bike |
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
124.2 ccm (7.58 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
Compression
|
12.0:1 |
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Electronic CDI |
Lubrication system
|
Oil Pump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-plate in oil bath |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel perimetral double tube |
Front suspension
|
40 upside down fork. |
Front wheel travel
|
110 mm (4.3 inches) |
Rear suspension
|
Mono-shock |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
110/70-17 |
Rear tire
|
130/70-17 |
Front brakes
|
Single disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
218 mm (8.6 inches) |
Physical measures and capacities |
Dry weight
|
120.0 kg (264.6 pounds) |
Power/weight ratio
|
0.1250 HP/kg |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall length
|
2006 mm (79.0 inches) |
Overall width
|
750 mm (29.5 inches) |
Wheelbase
|
1326 mm (52.2 inches) |
Fuel capacity
|
13.00 litres (3.43 US gallons) |
Other specifications |
Color options
|
Red/black |
Starter
|
Electric |
Comments
|
Made in Spain |
Update specs | Report missing specs or required updates. |
Further information |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 09 Derbi Mulhacen Cafe 125 discussion group or the general Derbi discussion group. |
Related bikes | List related bikes for comparison of specs. |
|
Rating sample for this Derbi bike
|
Design and look for the 2009 Derbi Mulhacen Cafe 125:
(87.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
