| Derbi's profilation of this bike |
| Imagine a motorcycle with built-in cameras and a TV screen. Let your imagination run wild !
|
|
General information |
|
Model
|

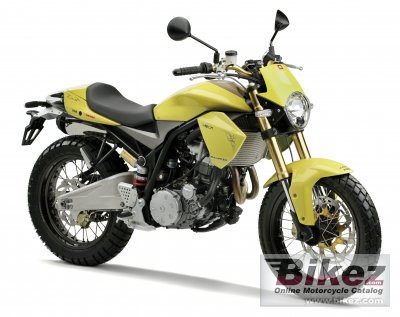

Derbi Mulhacen 659 X-Vision |
|
Year model
|
2007 |
|
Type
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
659.7 ccm (40.25 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Fuel system
|
Injection. Electronic fuel ignition NIPPODENSO with secondary air system, throttle valve 44mm. |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Multi-disc |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
43 mm. Upside-down fork. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Monoshock with progressive link system |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
110/80-18 |
|
Rear tire
|
150/70-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
165.0 kg (363.8 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
2120 mm (83.5 inches) |
|
Wheelbase
|
1386 mm (54.6 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
