Derbi's profilation of this bike |
We are facing a synthesis between the romanticism and the values of a different era, casting an eye at the flat-track and the American dirt track. |
General information |
Model name
|

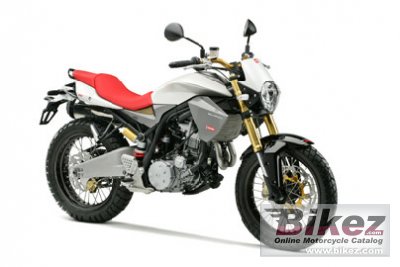

Derbi Mulhacen 659 |
Year model
|
2009 |
Type
|
Naked bike |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
659.7 ccm (40.25 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
10.0:1 |
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Nippondenso electronic injection with second air system,44mm throttle valve. |
Ignition
|
CDI |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-plate |
Chassis, suspension, brakes and wheels |
Front suspension
|
43 mm. Upside-down fork. |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Hydraulic progressive linkage monoshock. |
Rear wheel travel
|
120 mm (4.7 inches) |
Front tire
|
110/80-18 |
Rear tire
|
150/70-18 |
Front brakes
|
Single disc. Wave disc with radial mounted caliper |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Dry weight
|
165.0 kg (363.8 pounds) |
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
Overall height
|
1072 mm (42.2 inches) |
Overall length
|
2120 mm (83.5 inches) |
Overall width
|
750 mm (29.5 inches) |
Wheelbase
|
1386 mm (54.6 inches) |
Fuel capacity
|
13.00 litres (3.43 US gallons) |
Other specifications |
Color options
|
White |
Starter
|
Electric |
Comments
|
Derbi is a Spanish brand. |
