General information |
|
Model name
|

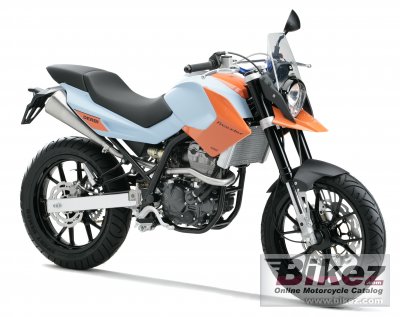

Derbi Mulhacén 125ST Freexter |
|
Year of manufacture
|
2007 |
|
Type
|
Prototype / concept model |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.2 ccm (7.58 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Upside down hydraulic fork |
|
Front wheel travel
|
100 mm (3.9 inches) |
|
Rear suspension
|
Single shock |
|
Front tire
|
100/70-17 |
|
Rear tire
|
140/70-17 |
|
Front brakes
|
Single disc. Vented inox |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Vented inox |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
White/orange |
|
Starter
|
Electric & kick |
|
Comments
|
Naked bike. |
