| Derbi's profilation of this bike |
| The new 125 cc, 4-valve, double overhead distribution camshaft, runs neatly with no annoying vibrations. An unrivalled concentration of technology, reliability and economy of use. |
|
General information |
|
Model name
|

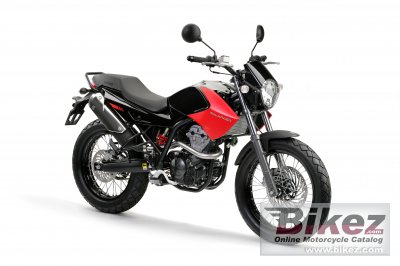

Derbi Mulhacen 125 |
|
Year
|
2011 |
|
Category
|
Naked bike |
| Price as new | Euro 3152. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
124.2 ccm (7.58 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 30 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate in oil bath |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular High Tensile Steel |
|
Front suspension
|
37 hydraulic fork. |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Mono-shock |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
100/90-18 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
218 mm (8.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
110.0 kg (242.5 pounds) |
|
Weight incl. oil, gas, etc
|
124.0 kg (273.4 pounds) |
|
Power/weight ratio
|
0.1364 HP/kg |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall length
|
1975 mm (77.8 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Wheelbase
|
1326 mm (52.2 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Spanish scrambler. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Derbi Mulhacen 125 discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Derbi bike
|
Offroad capabilities for the 2011 Derbi Mulhacen 125:
 (50.6 out of 100)
