| Derbi's profilation of this bike |
| The new 125 cc, 4-valve, double overhead distribution camshaft, runs neatly with no annoying vibrations. An unrivalled concentration of technology, reliability and economy of use. |
| General information |
|---|

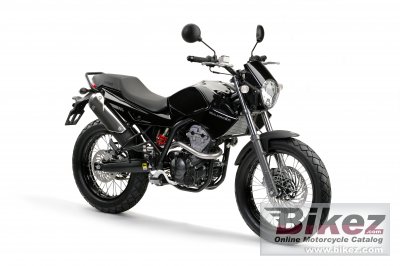

| Model: | Derbi Mulhacen 125 |
| Year: | 2010 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.20 ccm (7.58 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 15.00 HP (10.9 kW)) @ 9250 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 58.0 x 47.0 mm (2.3 x 1.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. 30 mm |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system: | Dry sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi-plate in oil bath |
| Exhaust system: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular High Tensile Steel |
| Front suspension: | 37 hydraulic fork. 130 mm travel |
| Rear suspension: | Mono-shock 130 mm travel |
| Front tyre: | 100/90-18 |
| Rear tyre: | 130/80-17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 280 mm (11.0 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 110.0 kg (242.5 pounds) |
| Weight incl. oil, gas, etc: | 124.0 kg (273.4 pounds) |
| Power/weight ratio: | 0.1364 HP/kg |
| Seat height: | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,065 mm (41.9 inches) |
| Overall length: | 1,975 mm (77.8 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Wheelbase: | 1,326 mm (52.2 inches) |
| Fuel capacity: | 11.00 litres (2.91 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric |
| Comments: | Spanish brand. |
