| Derbi's profilation of this bike |
| Its 125 cc 4-stroke 4-valve Euro3 single cylinder engine with double overhead camshaft is extremely compact. Liquid cooled, a 58 x 47 mm bore for stroke and a 12:1 compression ratio, it releases 15 hp at 9250 rpm, being the most powerful of its class. |
|
General information |
|
Model
|

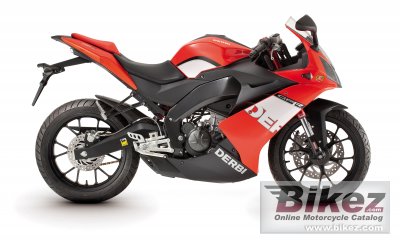

Derbi GPR 125 4T 4S |
|
Model year
|
2012 |
|
Category
|
Sport |
| Price as new | Euro 4045. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
58.0 x 47.0 mm (2.3 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 30 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc |
|
Emission details
|
Euro III |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
40 mm upside-down fork. |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
110/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc. Radial Caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Floating Caliper |
|
Diameter
|
218 mm (8.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.1250 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2015 mm (79.3 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
White, red, black |
|
Starter
|
Electric |
|
Instruments
|
Multifunction instrument panel with LCD display inspired by MotoGP. |
|
Comments
|
Spanish made bike. |
