| Derbi's profilation of this bike |
| Modern engines ensure high performance, reduced upkeep and respect for the environment. |
|
General information |
|
Motorcycle name
|

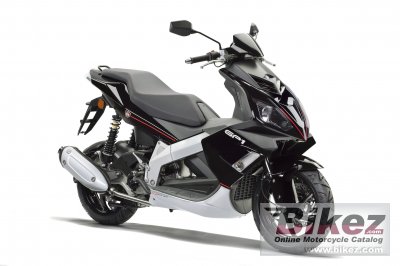

Derbi GP1 125 Racing |
|
Year model
|
2009 |
|
Type
|
Scooter |
|
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.61 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
40 mm upside-down fork. |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Double-shock |
|
Rear wheel travel
|
75 mm (3.0 inches) |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
138.0 kg (304.2 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1228 mm (48.3 inches) |
|
Overall length
|
1914 mm (75.4 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1374 mm (54.1 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Comments
|
Made in Spain. |
