| Derbi's profilation of this bike |
| The brand new DXR 250 is a strong first “serving” in the Derbi Quad line-up offering a decent means of fun and sport towards young people. |
|
General information |
|
Motorcycle name
|

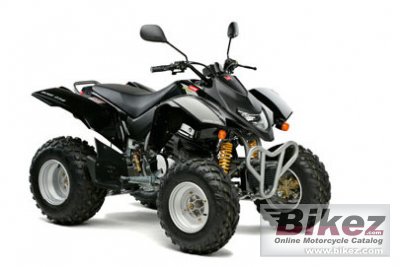

Derbi DXR 250 |
|
Model year
|
2009 |
|
Category
|
ATV |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
234.0 ccm (14.28 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Compression
|
9.2:1 |
|
Fuel system
|
Carburettor. Keihin |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double braced independenly adjustable |
|
Rear suspension
|
Single braced (Unitrack system) |
|
Front tire
|
AT21x7-10 |
|
Rear tire
|
AT21x7-10 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
173.0 kg (381.4 pounds) |
|
Seat height
|
610 mm (24.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1030 mm (40.6 inches) |
|
Overall length
|
1640 mm (64.6 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Wheelbase
|
1080 mm (42.5 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Oil capacity
|
0.60 litres (0.63 US quarts) |
|
Other specifications |
|
Color options
|
Black, red |
|
Starter
|
Electric |
|
Comments
|
5-speed with reverse. Spanish ATV. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Derbi DXR 250 discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Derbi bike
|
Offroad capabilities for the 2009 Derbi DXR 250:
 (56.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
