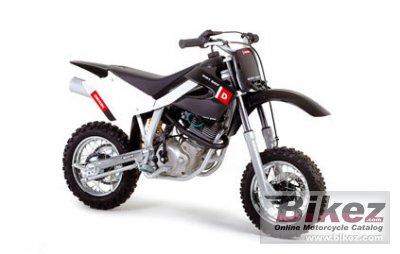

Derbi Dirt Boy 50 20092009 Derbi Dirt Boy 50 specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| The house of Derbi is aiming to strengthen the foundations of its leadership. |
| General moped information | |
|---|---|
| Model | Derbi Dirt Boy 50 |
| Year | 2009 |
| Category | Minibike, cross |
| Rating | 3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.9 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. 14 mm |
| Ignition | CDI |
| Lubrication system | Oil pump |
| Cooling system | Air |
| Gearbox | 1-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork. |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Monoshock. |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 2.50-12 |
| Rear tire | 2.75-10 |
| Front brakes | Single disc |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 90 mm (3.5 inches) |
| Physical measures and capacities | |
| Dry weight | 47.0 kg (103.6 pounds) |
| Seat height | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall length | 1290 mm (50.8 inches) |
| Overall width | 519 mm (20.4 inches) |
| Wheelbase | 905 mm (35.6 inches) |
| Fuel capacity | 2.30 litres (0.61 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Black/white |
| Starter | Kick |
| Comments | Spanish made bike. Intended for child use. |
