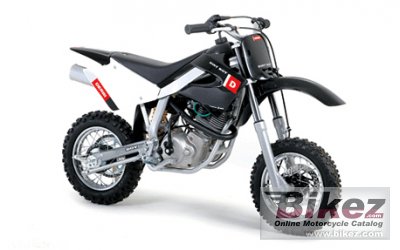

Derbi Dirt Boy 50 20082008 Derbi Dirt Boy 50 specifications, pictures, reviews and rating |
| Derbi's profilation of this bike |
| Derbi is producing minimotos for the smallest but using only the best components. |
| General moped information | |
|---|---|
| Model | Derbi Dirt Boy 50 |
| Year of manufacture | 2008 |
| Type | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.9 ccm (3.04 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Oil pump |
| Cooling system | Air |
| Gearbox | 1-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork. 120 mm travel |
| Rear suspension | Monoshock. 140 mm travel |
| Front tire | 2.5-12 |
| Rear tire | 2.75-10 |
| Front brakes | Single disc |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 90 mm (3.5 inches) |
| Physical measures and capacities | |
| Dry weight | 47.0 kg (103.6 pounds) |
| Seat height | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall height | 1260 mm (49.6 inches) |
| Overall width | 815 mm (32.1 inches) |
| Wheelbase | 905 mm (35.6 inches) |
| Fuel capacity | 2.30 litres (0.61 US gallons) |
| Other specifications | |
| Color options | Black/white |
| Starter | Kick |
