| Derbi's profilation of this bike |
| The DFX is Derbi´s proposal to enjoy riding a quad without having a driver’s license. |
|
General moped information |
|
Model name
|

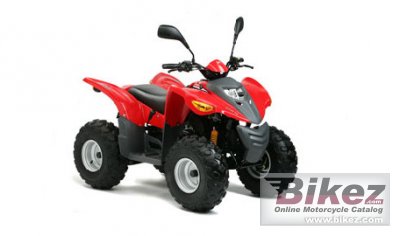

Derbi DFW 50 |
|
Year of manufacture
|
2009 |
|
Type
|
ATV |
|
Rating
|
3.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Fuel system
|
Carburettor. Mikuni |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
2-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independently action |
|
Rear suspension
|
Single shock |
|
Front tire
|
19x7-8 |
|
Rear tire
|
19x7-8 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Seat height
|
610 mm (24.0 inches) If adjustable, lowest setting. |
|
Overall height
|
920 mm (36.2 inches) |
|
Overall length
|
1475 mm (58.1 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Wheelbase
|
960 mm (37.8 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Oil capacity
|
0.60 litres (0.63 US quarts) |
|
Other specifications |
|
Color options
|
Black/red |
|
Starter
|
Electric |
