| Derbi's profilation of this bike |
| A new scooter with a totally overhauled image, more modern, attractive and technologically advanced, based on a Piaggio product platform – which at a glance already tells us of the promise of this model’s qualities. |
|
General information |
|
Model
|

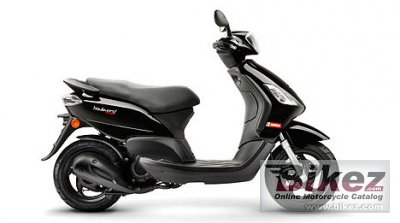

Derbi Boulevard 125 4T |
|
Model year
|
2009 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tube type in steel |
|
Front suspension
|
32 mm fork. |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Single shock absorber |
|
Rear wheel travel
|
64 mm (2.5 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall length
|
1880 mm (74.0 inches) |
|
Overall width
|
735 mm (28.9 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
|
Comments
|
Derbi is a Spanish brand. |
