| Derbi's profilation of this bike |
| The scooter Derbi Atlantis has made its name because of its balance and versatility. A wide range of drivers already appreciate its different and at the same time complementary values, like its elegance and comfort. |
|
General moped information |
|
Motorcycle name
|

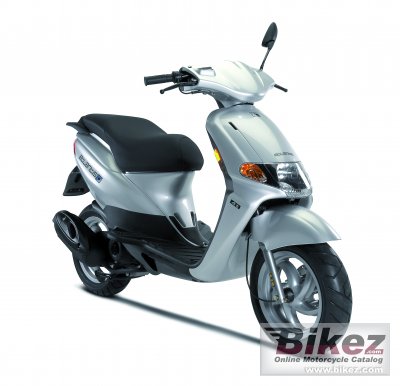

Derbi Atlantis City 50 4T |
|
Model year
|
2008 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.9 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.0 x 41.8 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
System Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automated |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
25 mm hydraulic fork. |
|
Rear suspension
|
Monoshock. |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Other specifications |
|
Color options
|
Grey, black |
|
Starter
|
Electric & kick |
