| Derbi's profilation of this bike |
| At the rhythm of new times |
|
General moped information |
|
Model
|

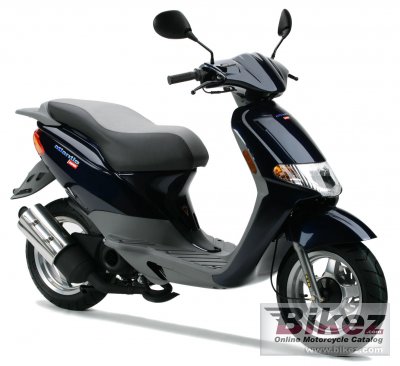

Derbi Atlantis City 50 4T |
|
Year model
|
2006 |
|
Type
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
3.6 HP (2.6 kW)) @ 7200 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.0 x 41.8 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. Keihin CVK 18 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Centrifugal automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork, |
|
Rear suspension
|
Lineal gas single absorber |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Overall length
|
1810 mm (71.3 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Grey, Black, Blue, Green |
|
Starter
|
Electric & kick |
