| Derbi's profilation of this bike |
| With its compact qualities, its elegant forms and forceful acceleration, the Atlantis is the leader of urban mobility. This is your Atlantis moment. |
|
General moped information |
|
Model
|

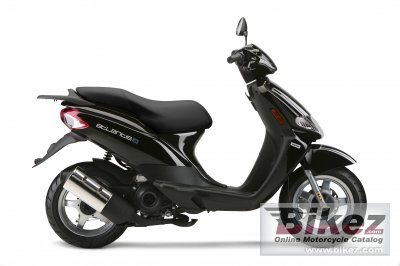

Derbi Atlantis City 50 2T |
|
Year model
|
2009 |
|
Type
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Separate mixing with mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automated |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
37 hydraulic fork. |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
65 mm (2.6 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
86.0 kg (189.6 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
1810 mm (71.3 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Oil capacity
|
1.50 litres (1.59 US quarts) |
|
Other specifications |
|
Color options
|
Re/black/white |
|
Starter
|
Electric & kick |
|
Comments
|
Spanish scooter |
