| Derbi's profilation of this bike |
| Enjoy every moment. Make each instant easier by putting all the possibilities that offers you the Atlantis at your service. With its compact qualities, its elegant forms and forceful acceleration, the Atlantis is the leader of urban mobility. |
|
General moped information |
|
Model name
|

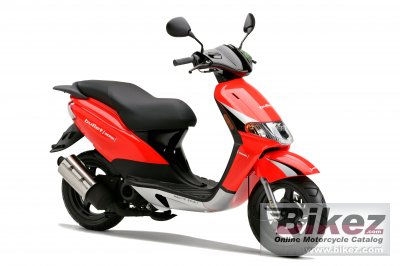

Derbi Atlantis City 50 2T |
|
Year of manufacture
|
2008 |
|
Type
|
Scooter |
|
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
Separate mixing with mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automated |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
37 hydraulic fork. 130 mm travel |
|
Rear suspension
|
Monoshock. 65 mm. travel |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
86.0 kg (189.6 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2222 mm (87.5 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
