| Derbi's profilation of this bike |
| A wide range of drivers already appreciate its different and at the same time complementary values, like its elegance and comfort. The Derbi Atlantis is an easy to handle and sportive all-round talent. |
|
General moped information |
|
Motorcycle name
|

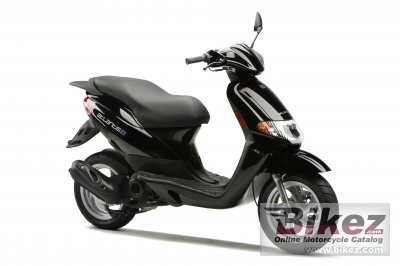

Derbi Atlantis 50 4T |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.9 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.0 x 41.8 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. 18 mm |
|
Ignition
|
Electronic CDI |
|
Lubrication system
|
System oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
25 mm hydraulic fork. |
|
Front wheel travel
|
65 mm (2.6 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
65 mm (2.6 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
1810 mm (71.3 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Other specifications |
|
Color options
|
Silver, black, blue, yellow |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 4Ah battery |
|
Comments
|
Made in Spain. |
