| Derbi's profilation of this bike |
| At the Rhythm of New Times. The scooter Derbi Atlantis has made its name because of its balance and versatility. A wide range of drivers already appreciate its different and at the same time complementary values, like its elegance and comfort. |
|
General moped information |
|
Motorcycle name
|

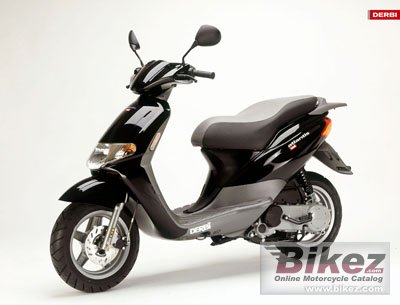

Derbi Atlantis 50 4T |
|
Year of manufacture
|
2010 |
|
Type
|
Scooter |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.9 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
39.0 x 41.8 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. 18 mm |
|
Lubrication system
|
System oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
25 mm hydraulic fork. |
|
Front wheel travel
|
65 mm (2.6 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
65 mm (2.6 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
93.0 kg (205.0 pounds) |
|
Weight incl. oil, gas, etc
|
102.0 kg (224.9 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall length
|
1810 mm (71.3 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Other specifications |
|
Color options
|
Silver, black, blue, yellow |
|
Starter
|
Electric & kick |
|
Comments
|
Derbi scooters are made in Spain. |
