| Derbi's profilation of this bike |
| Enjoy every moment. Make each instant easier by putting all the possibilities that offers you the Atlantis at your service. With its compact qualities, its elegant forms and forceful acceleration, the Atlantis is the leader of urban mobility. |
|
General moped information |
|
Model name
|

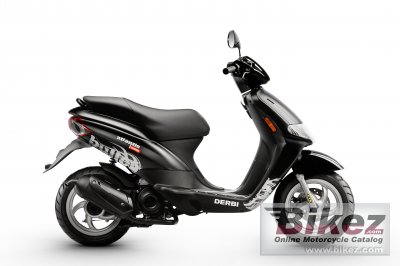

Derbi Atlantis 50 2T |
|
Year model
|
2012 |
|
Type
|
Scooter |
| Price as new | Euro 1538. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
10.5:1 |
|
Fuel system
|
Carburettor. 17.5 mm |
|
Ignition
|
Electronic C.D.I. |
|
Lubrication system
|
Mechanical oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automated |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork. |
|
Front wheel travel
|
65 mm (2.6 inches) |
|
Rear suspension
|
Monoshock. |
|
Rear wheel travel
|
65 mm (2.6 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Wheels
|
5-spoke |
|
Seat
|
Dual |
|
Physical measures and capacities |
|
Dry weight
|
86.0 kg (189.6 pounds) |
|
Weight incl. oil, gas, etc
|
95.0 kg (209.4 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
1810 mm (71.3 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Oil capacity
|
1.50 litres (1.59 US quarts) |
|
Other specifications |
|
Color options
|
Red, black, white |
|
Starter
|
Electric |
|
Comments
|
Spanish made scooter |
