General moped information |
|
Motorcycle name
|

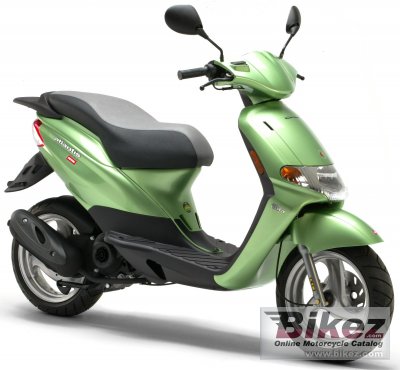

Derbi Atlantis |
|
Model year
|
2005 |
|
Category
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.9 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
39.9 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. PVHA 17.5 |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic fork, |
|
Rear suspension
|
Lineal gas single absorber |
|
Front tire
|
120/80-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Overall length
|
1810 mm (71.3 inches) |
|
Wheelbase
|
1265 mm (49.8 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
