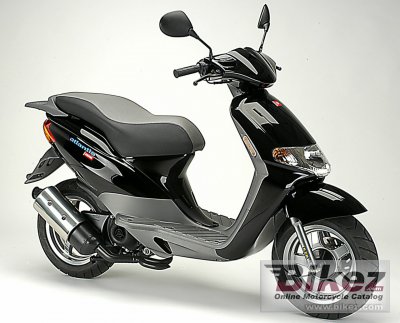

Derbi Atlantis 20042004 Derbi Atlantis specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Model | Derbi Atlantis |
| Year | 2004 |
| Category | Scooter |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.9 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 40.0 x 39.3 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork, 25 mm |
| Front wheel travel | 65 mm (2.6 inches) |
| Rear suspension | Linear single absorber |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 120/70-17 |
| Rear tire | 120/70-17 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 1810 mm (71.3 inches) |
| Overall width | 675 mm (26.6 inches) |
| Wheelbase | 1265 mm (49.8 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Color options | Yellow,Black, Grey, Light blue, Dark blue |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Derbi Atlantis discussion group or the general Derbi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
