DB Motors ZZ 20102010 DB Motors ZZ specifications, pictures, reviews and rating |

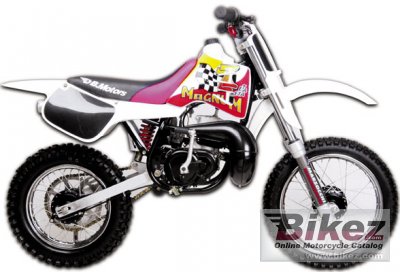

![]() Picture credits - DB Motors. Click to submit more pictures.
|
|
General moped information | |
---|---|
Model: | DB Motors ZZ |
Year: | 2010 |
Category: | Minibike, cross |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission | |
Displacement: | 49.80 ccm (3.04 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 2.50 HP (1.8 kW)) @ 7500 RPM |
Compression: | 9.5:1 |
Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
Fuel system: | Carburettor. Dellorto SHA 14/12 |
Ignition: | Electronic |
Lubrication system: | 2% mixture |
Gearbox: | Automatic |
Transmission type, final drive: | Chain |
Clutch: | Automatic centrifugal light 2-shoe oil |
Exhaust system: | Racing-type with aluminium muffler |
Chassis, suspension, brakes and wheels | |
Frame type: | Single steel beam frame |
Front suspension: | Magnum 32mm hydraulic telescopic fork |
Rear suspension: | Mechanical shock absorber |
Front tyre: | 2.50-10 |
Rear tyre: | 2.50-10 |
Front brakes: | Expanding brake (drum brake). Drum brake with extractable pin |
Front brakes diameter: | 90 mm (3.5 inches) |
Rear brakes: | Expanding brake (drum brake). Drum brake with extractable pin |
Rear brakes diameter: | 90 mm (3.5 inches) |
Physical measures and capacities | |
Dry weight: | 42.0 kg (92.6 pounds) |
Power/weight ratio: | 0.0595 HP/kg |
Seat height: | 640 mm (25.2 inches) If adjustable, lowest setting. |
Overall height: | 930 mm (36.6 inches) |
Overall length: | 1,370 mm (53.9 inches) |
Overall width: | 300 mm (11.8 inches) |
Wheelbase: | 957 mm (37.7 inches) |
Fuel capacity: | 4.20 litres (1.11 gallons) |
Other specifications | |
Color options: | Multicolored |
Starter: | Kick |
Comments: | Available with 10´-10´ or 12´-14´ wheels. Italian brand. |
