DB Motors ZZ 20092009 DB Motors ZZ specifications, pictures, reviews and rating |

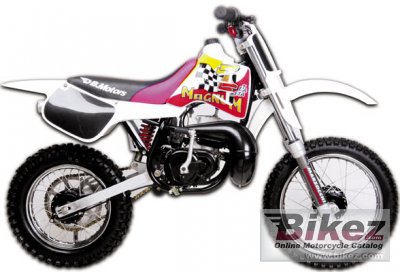

 2009 DB Motors ZZ. Picture credits - DB Motors. Submit more pictures.
|
| General moped information | |
|---|---|
| Model | DB Motors ZZ |
| Year | 2009 |
| Category | Minibike, cross |
| Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 2.5 HP (1.8 kW)) @ 7500 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dellorto SHA 14/12 |
| Ignition | Electronic |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal light 2-shoe oil |
| Exhaust system | racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single steel beam frame |
| Front suspension | Magnum 32mm hydraulic telescopic fork |
| Rear suspension | Mechanical shock absorber |
| Front brakes | Expanding brake (drum brake). Drum brake with extractable pin |
| Diameter | 90 mm (3.5 inches) |
| Rear brakes | Expanding brake (drum brake). Drum brake with extractable pin |
| Diameter | 90 mm (3.5 inches) |
| Physical measures and capacities | |
| Dry weight | 42.0 kg (92.6 pounds) |
| Power/weight ratio | 0.0595 HP/kg |
| Seat height | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Overall height | 930 mm (36.6 inches) |
| Overall length | 1370 mm (53.9 inches) |
| Overall width | 300 mm (11.8 inches) |
| Wheelbase | 957 mm (37.7 inches) |
| Fuel capacity | 4.20 litres (1.11 US gallons) |
| Other specifications | |
| Starter | Kick |
| Comments | Available with 10´-10´ or 12´-14´ wheels. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 DB Motors ZZ discussion group or the general DB Motors discussion group. |
| Related bikes | List related bikes for comparison of specs. |
