| General moped information |
|---|

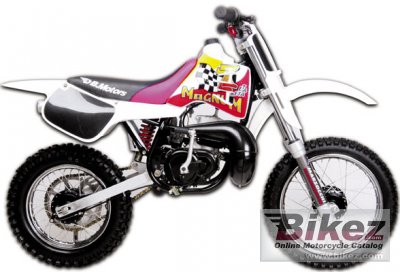

| Model | DB Motors ZZ 14-12 inch wheels |
| Year | 2007 |
| Category | Minibike, cross |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 2.5 HP (1.8 kW)) @ 7500 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dell’Orto |
| Ignition | Electronic |
| Lubrication system | EURO unleaded Nc 623-02 R.O.N. 95. Oil and premium grade gasoline - mixture at 2% |
| Gearbox | Automatic |
| Clutch | Automatic centrifugal light 2-shoe oil batch clutch. |
| Exhaust system | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Single steel beam frame |
| Front suspension | Magnum 32mm hydraulic telescopic fork |
| Rear suspension | Mechanical shock absorber |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight | 42.0 kg (92.6 pounds) |
| Power/weight ratio | 0.0595 HP/kg |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height | 940 mm (37.0 inches) |
| Overall length | 1455 mm (57.3 inches) |
| Overall width | 300 mm (11.8 inches) |
| Wheelbase | 957 mm (37.7 inches) |
| Fuel capacity | 4.20 litres (1.11 US gallons) |
| Other specifications |
|---|
| Starter | Kick |
