DB Motors Pirat LC 20092009 DB Motors Pirat LC specifications, pictures, reviews and rating |

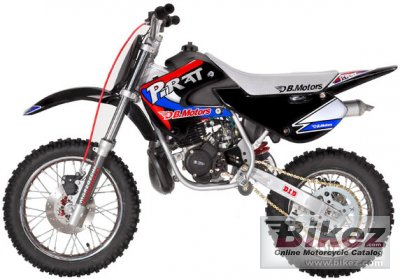

 2009 DB Motors Pirat LC. Picture credits - DB Motors. Submit more pictures. |
| General moped information | |
|---|---|
| Motorcycle name | DB Motors Pirat LC |
| Year model | 2009 |
| Type | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 49.8 ccm (3.04 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 12.0 HP (8.8 kW)) @ 14500 RPM |
| Compression | 15.5:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dell’Orto PHBG 19 |
| Fuel control | Overhead Cams (OHC) |
| Ignition | Electronic |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Exhaust system | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Magnum 32mm hydraulic telescopic fork |
| Rear suspension | Special racing gas-operated shock absorber |
| Front brakes | Single disc. 180 mm disc brake with hydr. master cylinder and calliper |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc. Hydraulic rear foot brake |
| Physical measures and capacities | |
| Dry weight | 44.5 kg (98.1 pounds) |
| Power/weight ratio | 0.2697 HP/kg |
| Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall height | 930 mm (36.6 inches) |
| Overall length | 1400 mm (55.1 inches) |
| Wheelbase | 957 mm (37.7 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Black/multicolored |
| Starter | Kick |
| Comments | The racing model of the Del Buono mini bikes. Two wheel options: 10´-12 or 12´-14´. |
