DB Motors Pirat LC 12-14 20062006 DB Motors Pirat LC 12-14 specifications, pictures, reviews and rating |

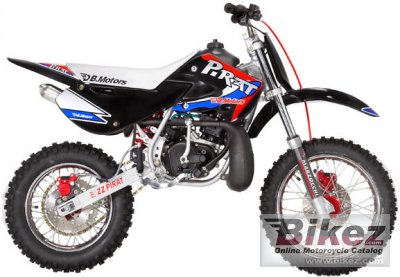

 2006 DB Motors Pirat LC 12-14. Picture credits - DB Motors. Submit more pictures. |
| General moped information | |
|---|---|
| Model | DB Motors Pirat LC 12-14 |
| Model year | 2006 |
| Category | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 12.0 HP (8.8 kW)) @ 14500 RPM |
| Compression | 15.5:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dell’Orto PHBG 19 |
| Ignition | Electronic |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Exhaust system | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single steel beam frame |
| Front suspension | Magnum hydraulic telescopic fork |
| Rear suspension | Special racing |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 44.5 kg (98.1 pounds) |
| Power/weight ratio | 0.2697 HP/kg |
| Overall length | 1485 mm (58.5 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Starter | Kick |
