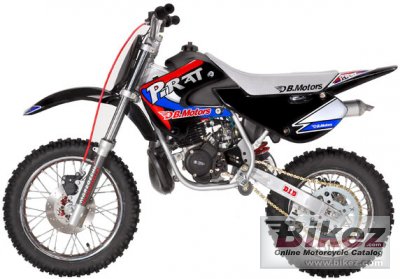

DB Motors Pirat AC 12-14 inch wheels 20072007 DB Motors Pirat AC 12-14 inch wheels specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Model | DB Motors Pirat AC 12-14 inch wheels |
| Year | 2007 |
| Category | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 11.0 HP (8.0 kW)) @ 13500 RPM |
| Compression | 14.5:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dell’orto PHBG 19 |
| Ignition | Electronic |
| Lubrication system | EURO unleaded Nc 623-02 R.O.N. 95. Oil and premium grade gasoline mixture at 2% |
| Cooling system | Air |
| Gearbox | Automatic |
| Clutch | Automatic centrifugal |
| Exhaust system | Racing-type with aluminium muffler |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single steel beam frame |
| Front suspension | Magnum 32mm hydraulic telescopic fork |
| Rear suspension | Special racing Paioli gas-operated shock |
| Front tire | 2.50-14 |
| Rear tire | 3.00-12 |
| Front brakes | Single disc. 180 mm disc brake with hydr. master cylinder and calliper |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc. 160 mm disc brake with hydr. master cylinder and caliper |
| Diameter | 160 mm (6.3 inches) |
| Physical measures and capacities | |
| Dry weight | 44.0 kg (97.0 pounds) |
| Power/weight ratio | 0.2500 HP/kg |
| Seat height | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Overall height | 940 mm (37.0 inches) |
| Overall length | 1485 mm (58.5 inches) |
| Overall width | 300 mm (11.8 inches) |
| Wheelbase | 987 mm (38.9 inches) |
| Fuel capacity | 4.20 litres (1.11 US gallons) |
| Other specifications | |
| Starter | Kick |
