General moped information |
---|

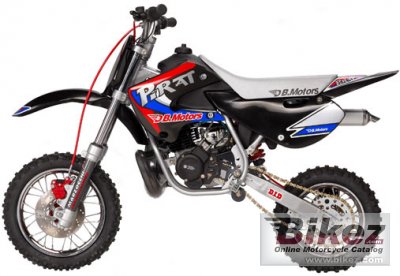

Model | DB Motors Pirat AC 12-10 inch wheels |
Year | 2007 |
Category | Minibike, cross |
Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
---|
Displacement | 49.8 ccm (3.04 cubic inches) |
Engine type | Single cylinder, two-stroke |
Power | 11.0 HP (8.0 kW)) @ 13500 RPM |
Compression | 14.5:1 |
Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
Fuel system | Carburettor. Dell’orto PHBG 19 |
Ignition | Electronic |
Lubrication system | EURO unleaded Nc 623-02 R.O.N. 95. Oil and premium grade gasoline mixture at 2% |
Cooling system | Air |
Gearbox | Automatic |
Clutch | Automatic centrifugal |
Exhaust system | Racing-type with aluminium muffler |
Chassis, suspension, brakes and wheels |
---|
Frame type | Single steel beam frame |
Front suspension | Magnum |
Rear suspension | Special racing |
Front tire | 2.50-12 |
Rear tire | 2.75-10 |
Front brakes | Single disc. 180 mm disc brake with hydr. master cylinder and calliper |
Diameter | 180 mm (7.1 inches) |
Rear brakes | Single disc. 160 mm disc brake with hydr. master cylinder and caliper |
Diameter | 160 mm (6.3 inches) |
Physical measures and capacities |
---|
Dry weight | 44.0 kg (97.0 pounds) |
Power/weight ratio | 0.2500 HP/kg |
Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
Overall height | 930 mm (36.6 inches) |
Overall length | 1400 mm (55.1 inches) |
Overall width | 300 mm (11.8 inches) |
Wheelbase | 957 mm (37.7 inches) |
Fuel capacity | 4.20 litres (1.11 US gallons) |
Other specifications |
---|
Starter | Kick |
