General information |
|
Motorcycle name
|

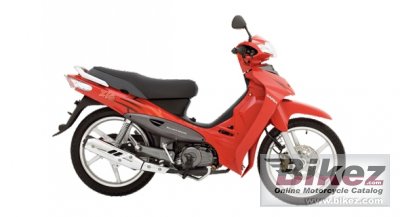

Dafra Zig |
|
Year model
|
2011 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
101.8 ccm (6.21 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
7.8 HP (5.7 kW)) @ 7500 RPM |
|
Torque
|
8.1 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 6000 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
49.0 x 54.0 mm (1.9 x 2.1 inches) |
|
Fuel system
|
Carburettor. PZ17 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Clutch
|
Wet multidisc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Monoblock |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Coil spring |
|
Front tire
|
2.50-17 |
|
Rear tire
|
2.75-17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Weight incl. oil, gas, etc
|
99.2 kg (218.7 pounds) |
|
Power/weight ratio
|
0.0821 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall length
|
1900 mm (74.8 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1190 mm (46.9 inches) |
|
Fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, black |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V – 5Ah battery |
|
Comments
|
Sold in Brazil. |
