General information |
|
Model name
|

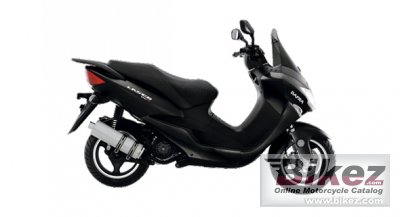

Dafra Laser 150 |
|
Model year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
149.6 ccm (9.13 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
11.5 HP (8.4 kW)) @ 8900 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
57.4 x 57.8 mm (2.3 x 2.3 inches) |
|
Fuel system
|
Carburettor. PZ27 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Double shock |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.0958 HP/kg |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Color options
|
Red, grey, yellow, black |
|
Starter
|
Electric & kick |
|
Comments
|
Brazilian brand. |
