| Daelim's profilation of this bike |
| The S-FIVE has wide wheels to give a more comfortable ride and better stability... a must for badly pot-holed suburban roads..!
The S-FIVE has wide wheels to give a more comfortable ride and better stability... a must for badly pot-holed suburban roads..!
|
| General moped information |
|---|

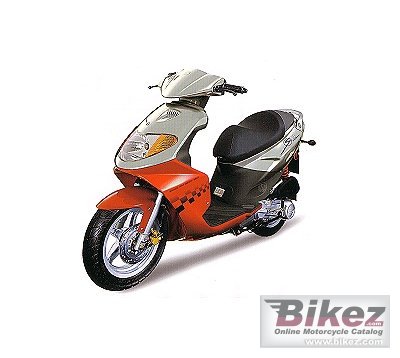

| Model: | Daelim S-Five |
| Year: | 2009 |
| Category: | Scooter |
| Rating: | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 49.5 ccm (3.02 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 6.8:1 |
| Bore x stroke: | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. PB type |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Swing arm |
| Front tyre: | 120/70-12 |
| Rear tyre: | 130/70-12 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 87.0 kg (191.8 pounds) |
| Seat height: | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Overall height: | 1114 mm (43.9 inches) |
| Overall length: | 1795 mm (70.7 inches) |
| Overall width: | 697 mm (27.4 inches) |
| Ground clearance: | 131 mm (5.2 inches) |
| Wheelbase: | 1260 mm (49.6 inches) |
| Other specifications |
|---|
| Color options: | Red, blue, black, silver, red/silver |
| Starter: | Electric & kick |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 09 Daelim S-Five discussion group or the general Daelim discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Daelim moped
|
Touring capabilities for the 2009 Daelim S-Five:
 (74.9 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
