General information |
|
Model name
|

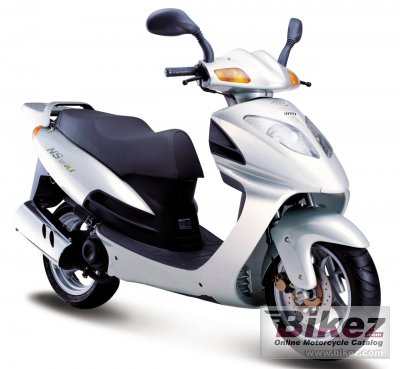

Daelim NS 125 DLX |
|
Model year
|
2004 |
|
Category
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.9 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
12.3 HP (9.0 kW)) |
|
Top speed
|
106.0 km/h (65.9 mph) |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
2.00 litres/100 km (50.0 km/l or 117.61 mpg) |
|
Greenhouse gases
|
46.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Under bone |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Swing arm |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.1025 HP/kg |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
1970 mm (77.6 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Grey |
|
Comments
|
The NS125DLX exists in a version with rear drum brake, called NS 125 III. |
